Our Core Machinery

Rod Breakdown Drawing Line

Non-slip drawing for single/dual copper wires with separate motor control.

View Specification

Planetary Strander (Big Bearing)

Two-ends supporting model with electronic synchronous stranding function.

View Specification

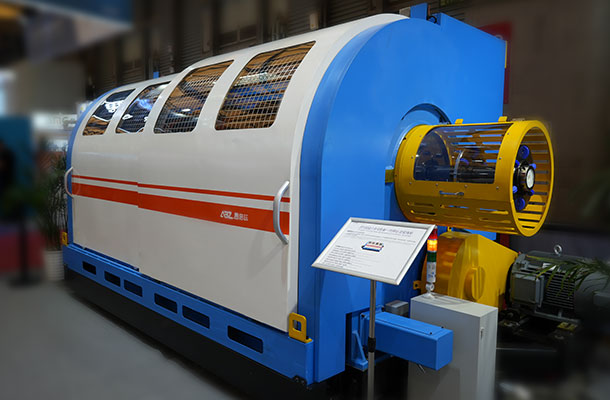

Rigid Frame Stranding Machine

High-speed, large cross-section stranding for power cables and conductors.

View Specification

High Speed Tubular Stranding Machine

Ideal for high-speed stranding of copper, aluminum, and steel wires.

View Specification

Cradle-type Laying up Machine

For laying up large cross-section power cables with independent motor control.

View Specification

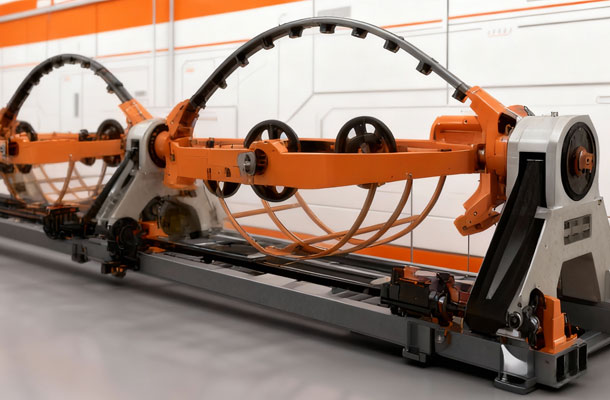

Bow Type Laying Up Machine

For laying up insulated cores and forming multi-core cables with precision.

View Specification

Copper Tape Screening Machine

High-speed, precision copper tape application for cable shielding.

View Specification

Double Twist Bunching Machine

High-speed, precision twisting for fine wires and specialized cables (Model TW630).

View Specification

Drum Twister Cabling/Armoring Machine

CKP Type for power cable cabling and steel wire/tape armoring.

View Specification

Solutions by Industry

Power Cable

Complete lines for low, medium, and high-voltage power transmission cables.

See Case Study →

Telecom & Data

Precision equipment for data, coaxial, and fiber optic cable manufacturing.

See Case Study →

Automotive Wire

High-speed, reliable machinery for the demanding automotive sector.

See Case Study →

Special Cables

Customized solutions for aerospace, medical, and industrial applications.

See Case Study →

Our Global Footprint

Trusted by industry leaders across continents. Hover over a point for details. Drag to pan and scroll to zoom.

Engineering Excellence, Global Trust

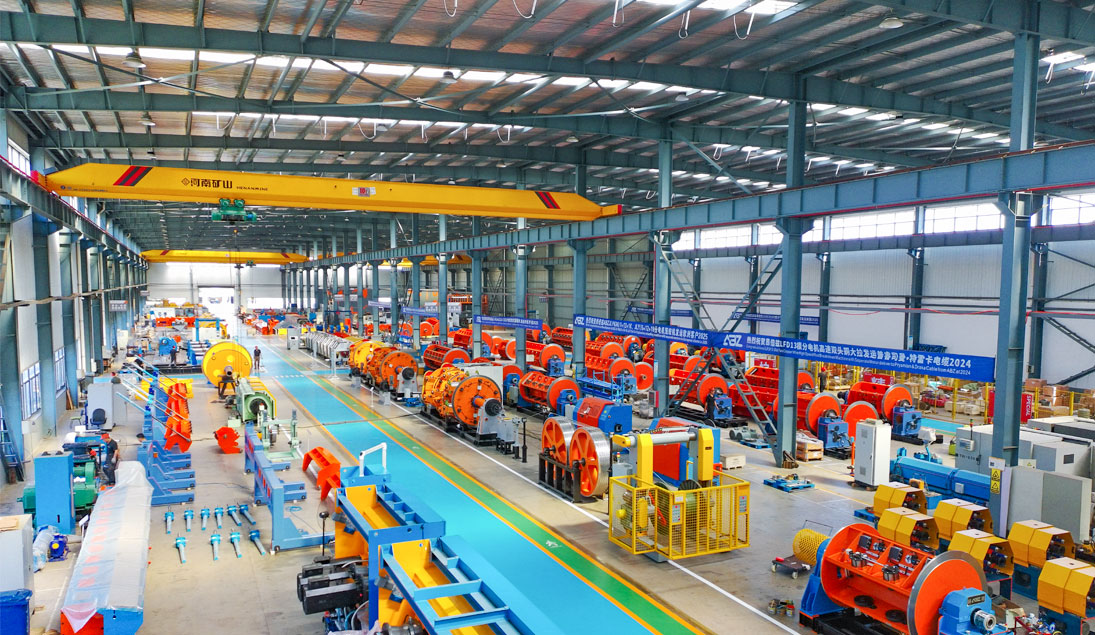

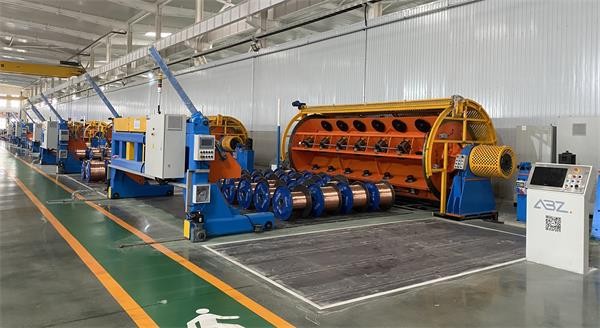

20,000m² State-of-the-Art Factory

Our ISO 901 certified facility integrates R&D, precision machining, and assembly under one roof. We leverage advanced CNC centers and rigorous quality control to translate heavy engineering into sleek, high-performance machinery. Every ABZ machine is a testament to our commitment to quality, durability, and innovation.

Made in China, trusted by the world.

Our Credentials & Awards

Science & Technology Certificate光电科学技术证书

Influential Brand Award推荐品牌企业

Influential Brand Award推荐品牌企业

Our Locations

Our global presence is supported by our state-of-the-art facilities.

Headquarters

Shanghai Office

Room 315, Building No.3, Lujiazui Financial Block, Pudong Area, Shanghai, China
+86-21-5085-0515
info@abz-sh.com

Get Directions

Manufacturing Facility

Changzhou Factory

No.89 East Dongcun Road, Jintan District, Changzhou City, Jiangsu Province, China
+86-519-8282-0515
info@abz-sh.com

Get Directions

Bow Type Laying Up Machine

Main Technical Parameters

Bobbin Size (mm)	Max Rotate Speed (rpm)	Wire Diameter (mm)
630	300	265	235	210	195	1.7-5.0	-
250	215	185	160	135	1.7-5.0	1.2-5.0

ITEM	Parameter	6 Bobbins	12 Bobbins	18 Bobbins	24 Bobbins	30 Bobbins
Max. Rotating Speed of Stranding Cage	(r/min)	250	210	230	190	195	165	175	155	150	130
Stranding Single Wire Diameter (ø mm)	Al Wire	1.8-5.0
Copper Wire	1.5-4.5

Bobbin Size (mm)	Max Rotating Speed (r/min)*	Conductor Diameter (mm)	Insulated Wire Diameter (mm)	Stranded Pitch	Pay off Tension
300	150 / 130 / 110 / 110	Ø0.6-Ø2.5mm	Ø0.5-Ø4mm	Mechanical	Hysteresis
400	125 / 110 / 100 / 90	Ø1.0-Ø3.5mm	Ø1.0-Ø5.0mm	Electronic Pitch	Hysteresis / Motorized Pay Off
500	110 / 100 / 90 / 80	Ø1.2-Ø5.0mm	Ø1.5-Ø8.0mm	Electronic Pitch	Hysteresis / Motorized Pay Off
630	100 / 90 / 80 / 70	Ø1.5-Ø6.0mm	Ø2.0-Ø10.0mm	Electronic Pitch	Hysteresis / Motorized Pay Off

ITEM	G200/1+6	G300/1+6	G400/1+6	G500/1+6	G630/1+6	G800/1+6	G800/1+12	G1250/1+12
Center Pay Off Bobbin	ø 200	ø 300	ø 400	ø 500	ø 630	ø 800	ø 800	ø 1250
Bobbin Inside Tube	ø 200	ø 300	ø 400	ø 500	ø 630	ø 800	ø 560	ø 630
Single Wire Diameter	0.16-0.20	0.5-1.5	0.7-2.5	1.2-4.0	1.3-5.0	1.8-5.0	1.3-3.6	1.5-5.0
Stranded Conductor Diameter	0.6	4.5	7.5	12	15	15	15	25
Tube Rotating Speed	1800rpm	1200rpm	700rpm	650rpm	600rpm	420rpm	580rpm	360rpm
Main Motor Power	18.5Kw	18.5Kw	22Kw	45Kw	45Kw	75Kw	110Kw	110Kw
Capstan Motor Power	0.75Kw	1.5Kw	3Kw	15Kw	22Kw	30Kw	37Kw	45Kw
Capstan Wheel Diameter	160	300	500	1000	1000	1000	1000	1600
Take Up Bobbin	ø 300-560	ø 500-630	ø 560-800	ø 500-1000	ø 800-1600	ø 1000-2000	ø 800-1600	ø 1000-2000
Bearing Stand Structure	Integrated Type
Pay off Tension	Mechanical/Swing Rod	Magnetic Hysteresis	Mechanical/Magnetic Power/Magnetic Hysteresis	Magnetic Power/Magnetic Hysteresis	Mechanical/Magnetic Power/Magnetic Hysteresis

Bobbin Size (mm)	Max Rotating Speed (r/min)	Max Stranded Diameter (mm)	Single Diameter (mm)	Max Capacity (T)	Max Loading Weight (T)
2000	50	100	<35	4	10
2500	40	120	<40	4	15
3150	35	150	<60	6	20
3600	25	150	<60	6	28
4000	25	150	<60	6	30
4200	25	150	<60	6	30

Model	Bobbin Size (mm)	Max Rotating Speed (r/min)	Single Diameter (mm)	Stranded Pitch (mm)
1000	1000	60	60	45	50	Ø5.0-Ø20.0mm	Electronic Pitch
1250	1250	50	50	35	40	Ø6.0-Ø25.0mm	Electronic Pitch
1600	1600	40	40	25	30	Ø10.0-Ø35.0mm	Electronic Pitch

Parameter	Value
Pay-off Bobbin (mm)	1600-3150
Copper tape max rotation speed (r/min)	600
Tape width (mm)	10-90
Wire OD (mm)	15-120
Stranding pitch (mm)	Electronic pitch
Caterpillar traction (KG)	2000kg
Take-up Bobbin (mm)	1600-3150

ITEM	LFD450/13 (single wire)	LFD450/13/2 (dual wires)	LFD450/11 (single wire)	LFD450/11/2 (dual wires)	LFD450/9 (single wire)	LFD450/9/2 (dual wires)
Max. Number of Drawing Die	13	13	11	11	9	9
Inlet Wire Diameter	Copper Rod Ø8.0 (250N/mm²)	Copper Rod Ø8.0 (250N/mm²)	Copper Rod Ø8.0 (250N/mm²)	Copper Rod Ø8.0 (250N/mm²)	Copper Rod Ø8.0 (250N/mm²)	Copper Rod Ø8.0 (250N/mm²)
Finished Wire Diameter	Ø 1.2-3.5 mm	2 × Ø 1.2-3.5 mm 1 × Ø 1.2-4.5 mm	Ø 1.5-3.5 mm	2 × Ø 1.5-3.5 mm 1 × Ø 1.5-4.5 mm	Ø 2.0-3.5 mm	2 × Ø 2.0-3.5 mm 1 × Ø 2.0-4.5 mm
Max. Linear Speed m/s	30	30	25	25	20	20
Drawing Capstan Diameter	450 mm	450 mm	450 mm	450 mm	450 mm	450 mm
Main Motor Power Kw	AC 37Kw × 12	AC 75Kw × 12	AC 37Kw × 10	AC 75Kw × 10	AC 37Kw × 8	AC 75Kw × 8
Final Capstan Motor Power Kw	AC 75Kw	AC 90Kw	AC 75Kw	AC 90Kw	AC 75Kw	AC 90Kw
Annealing Power	Max. 55V Max. 4300A AC 283Kw	Max. 55V Max. 8000A AC 586Kw	Max. 55V Max. 4300A AC 283Kw	Max. 55V Max. 8000A AC 586Kw	Max. 55V Max. 4300A AC 283Kw	Max. 55V Max. 8000A AC 586Kw
Total Power Kw	980	1720	890	1570	800	1420

Stranded Parameter	Speed/Take up Parameter
Cross Area	0.1-6mm²	Rotating Speed	3000rpm
Single Diameter	0.1-0.65mm	Max Linear Speed	350m/min
Max. Stranded Diameter	3.4mm	Take up Bobbin	PND630 PND560 PND500
Pitch	5-110mm
Take up Tension	15-60N/mm²

Technical Specifications

Bobbin Size	Max. Rotating Speed rpm B (Bobbin)				Wire Diameter (ø mm)
Bobbin Size	3B	4B	5B	6B	Aluminum	Copper	Steel	PVC/XLPE
630	1200	1200	1000	1000	-	-	-	/
800	900	900	800	800	-	-	-	≤ 16
1000	400	400	350	350	1.8-5.0	1.5-4.5	1.3-3.5	≤ 16
1250	400	400	350	350	1.8-5.0	1.5-4.5	1.3-3.5	≤ 16
1600	300	300	270	270	1.8-5.0	1.5-4.5	1.3-3.5	≤ 16
