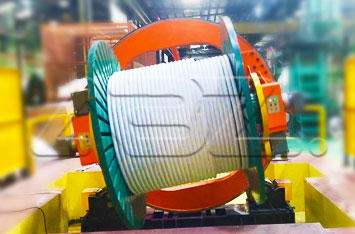

Drum Twister Cabling/Armoring Machine
CKP Type for power cable cabling and steel wire/tape armoring.
Get the Brochure

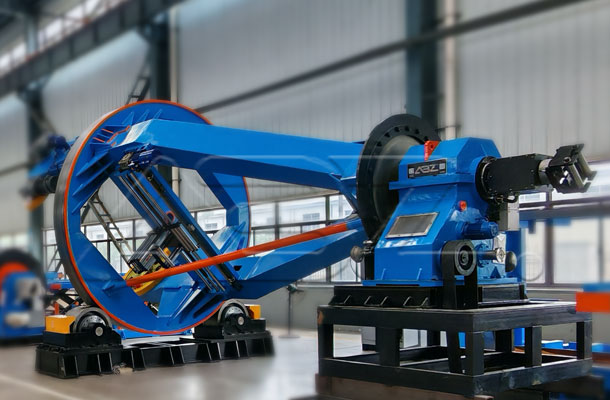

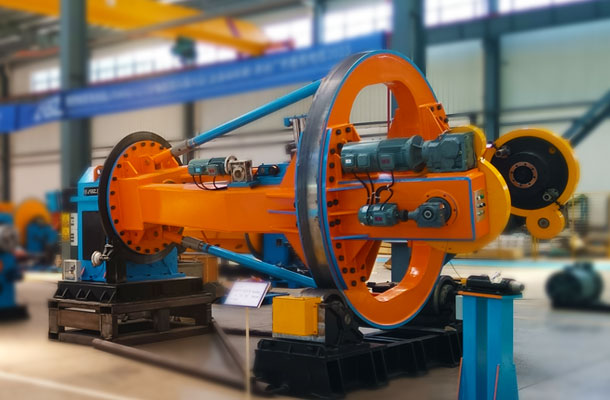

CKP Type Drum Twister Cabling/Armoring Machine
Technical Specifications
Main Technical Parameters
| Bobbin Size (mm) | Max Rotating Speed (r/min) | Max Stranded Diameter (mm) | Single Diameter (mm) | Max Capacity (T) | Max Loading Weight (T) |
|---|---|---|---|---|---|
| 2000 | 50 | 100 | <35 | 4 | 10 |
| 2500 | 40 | 120 | <40 | 4 | 15 |
| 3150 | 35 | 150 | <60 | 6 | 20 |
| 3600 | 25 | 150 | <60 | 6 | 28 |
| 4000 | 25 | 150 | <60 | 6 | 30 |
| 4200 | 25 | 150 | <60 | 6 | 30 |
- Advantages
- Applications
- Cases
- Services
- Get Solution & Quotation
Advantages
Heavy-Duty Drum Structure
Robust drum twisting structure ensures stable cabling and armoring operation; Supports large cable sizes with reliable long-term performance.
Precise Pitch and Tension Control

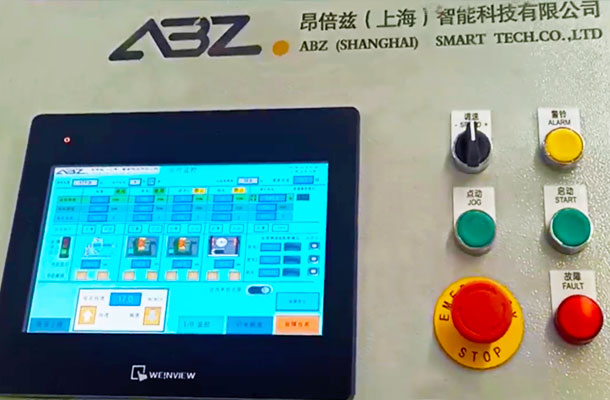

Advanced control system provides accurate pitch and tension adjustment; Ensures uniform cable structure and high-quality armoring performance.
Efficient Continuous Production
Optimized transmission system supports smooth and continuous high-speed operation; Improves production efficiency while reducing downtime.
Applications

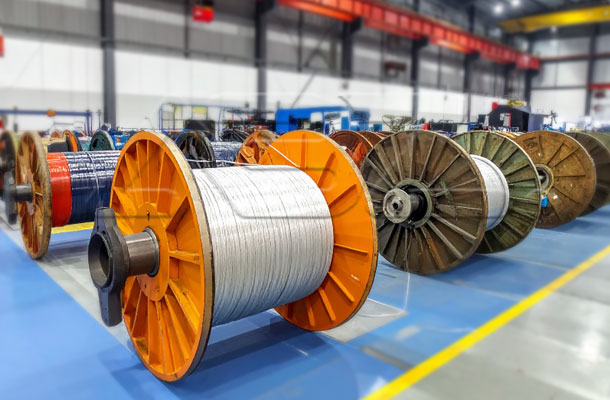

Power Cable Manufacturing
Building Wire Production
Bare Conductor Processing
