Rod Breakdown Drawing Line

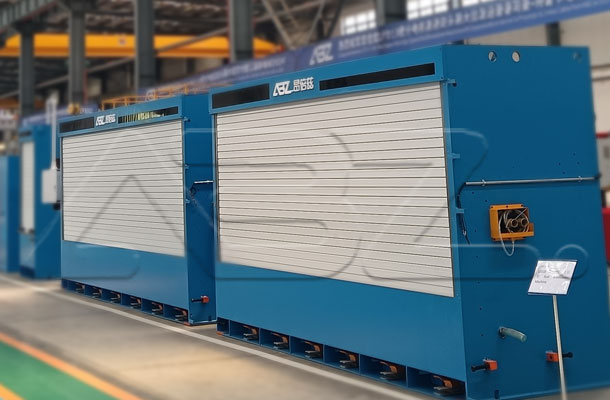

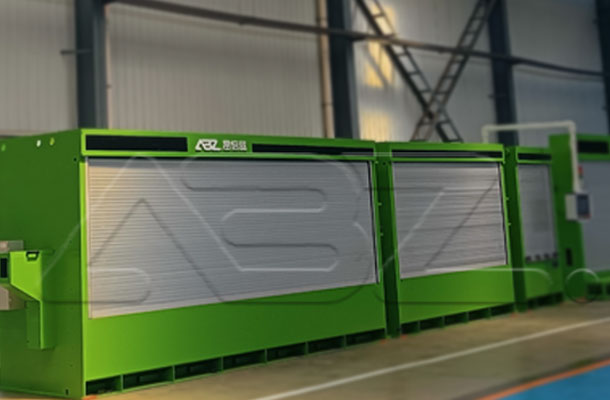

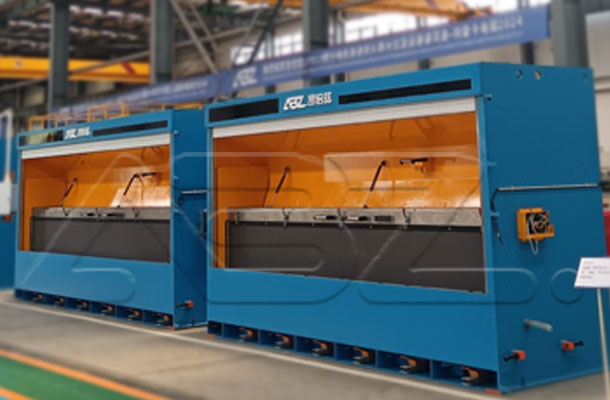

LFD450/13 Non Slip Type Rod Breakdown Machine for Single/Dual Copper Wires with Separate Motor

Technical Specifications

ITEM	LFD450/13 (single wire)	LFD450/13/2 (dual wires)	LFD450/11 (single wire)	LFD450/11/2 (dual wires)	LFD450/9 (single wire)	LFD450/9/2 (dual wires)
Max. Number of Drawing Die	13	13	11	11	9	9
Inlet Wire Diameter	Copper Rod Ø8.0 (250N/mm²)	Copper Rod Ø8.0 (250N/mm²)	Copper Rod Ø8.0 (250N/mm²)	Copper Rod Ø8.0 (250N/mm²)	Copper Rod Ø8.0 (250N/mm²)	Copper Rod Ø8.0 (250N/mm²)
Finished Wire Diameter	Ø 1.2-3.5 mm	2 × Ø 1.2-3.5 mm 1 × Ø 1.2-4.5 mm	Ø 1.5-3.5 mm	2 × Ø 1.5-3.5 mm 1 × Ø 1.5-4.5 mm	Ø 2.0-3.5 mm	2 × Ø 2.0-3.5 mm 1 × Ø 2.0-4.5 mm
Max. Linear Speed m/s	30	30	25	25	20	20
Drawing Capstan Diameter	450 mm	450 mm	450 mm	450 mm	450 mm	450 mm
Main Motor Power Kw	AC 37Kw × 12	AC 75Kw × 12	AC 37Kw × 10	AC 75Kw × 10	AC 37Kw × 8	AC 75Kw × 8
Final Capstan Motor Power Kw	AC 75Kw	AC 90Kw	AC 75Kw	AC 90Kw	AC 75Kw	AC 90Kw
Annealing Power	Max. 55V Max. 4300A AC 283Kw	Max. 55V Max. 8000A AC 586Kw	Max. 55V Max. 4300A AC 283Kw	Max. 55V Max. 8000A AC 586Kw	Max. 55V Max. 4300A AC 283Kw	Max. 55V Max. 8000A AC 586Kw
Total Power Kw	980	1720	890	1570	800	1420

High-Speed Drawing Performance

Optimized drawing capstan design enables stable high-speed wire drawing; Improves productivity while maintaining excellent wire surface quality.
Efficient Cooling & Lubrication

Advanced cooling and lubrication system reduces die wear and wire temperature; Ensures smooth operation and extends equipment service life.
Stable Continuous Production

Reliable transmission and control system support long-term continuous running; Minimizes wire breakage and improves overall production efficiency.
