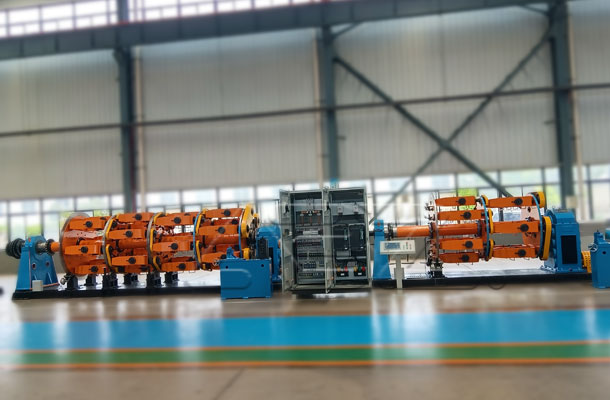

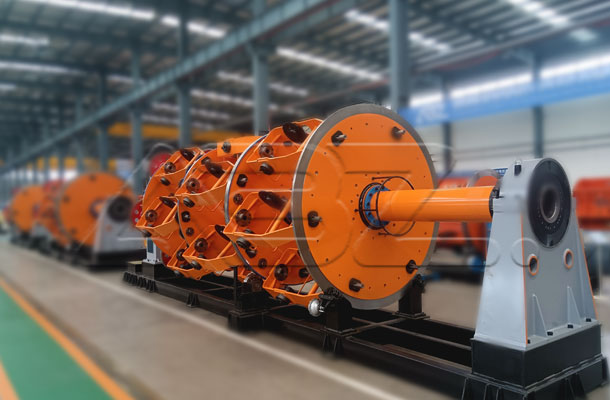

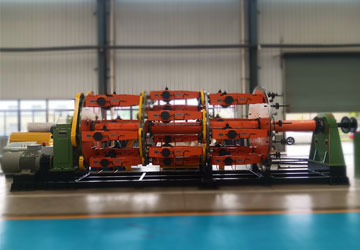

Planetary Strander (Big Bearing)
Two-ends supporting model with electronic synchronous stranding function.
Get the Brochure
Planetary Stranding Machine (Big Bearing, Two Ends Supporting)
Remark: Special electronic synchronous stranding function.
| Bobbin Size (mm) | Max Rotating Speed (r/min)* | Conductor Diameter (mm) | Insulated Wire Diameter (mm) | Stranded Pitch | Pay off Tension |
|---|---|---|---|---|---|
| 300 | 150 / 130 / 110 / 110 | Ø0.6-Ø2.5mm | Ø0.5-Ø4mm | Mechanical | Hysteresis |
| 400 | 125 / 110 / 100 / 90 | Ø1.0-Ø3.5mm | Ø1.0-Ø5.0mm | Electronic Pitch | Hysteresis / Motorized Pay Off |
| 500 | 110 / 100 / 90 / 80 | Ø1.2-Ø5.0mm | Ø1.5-Ø8.0mm | Electronic Pitch | Hysteresis / Motorized Pay Off |
| 630 | 100 / 90 / 80 / 70 | Ø1.5-Ø6.0mm | Ø2.0-Ø10.0mm | Electronic Pitch | Hysteresis / Motorized Pay Off |
- Advantages
- Applications

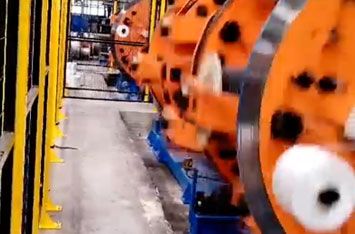

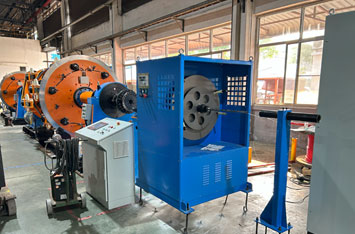

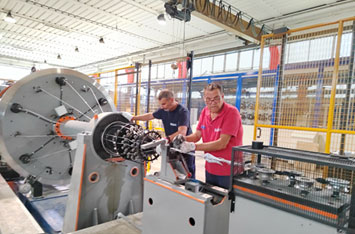

- Cases
- Services
- Get Solution & Quotation
Advantages
High-Speed Stranding
Optimized transmission system enables stable high-speed operation; Improves production efficiency while maintaining strand consistency.
Precise Tension Control
Advanced tension control ensures uniform wire distribution; Reduces conductor deformation and improves finished cable quality.
Flexible Production Capability
Supports various conductor sizes and stranding structures; Allows fast specification changes for efficient production switching.
Applications
Power Cable Manufacturing
Building Wire Production
Bare Conductor Processing
