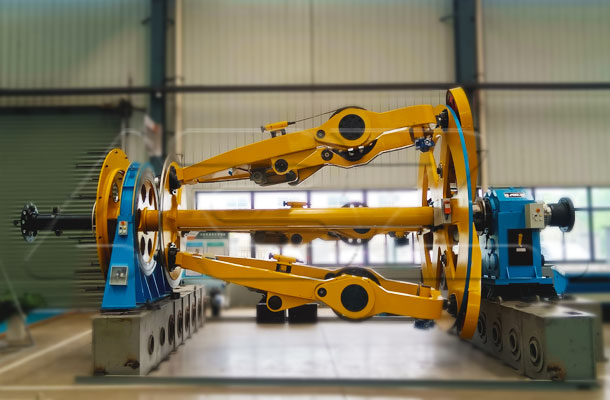

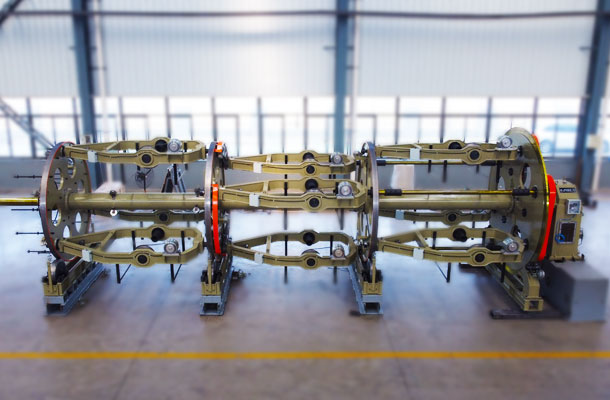

Cradle-type Laying up Machine (separate motors)

Technical Specifications

Model Bobbin Size (mm) Max Rotating Speed (r/min) Single Diameter (mm) Stranded Pitch (mm)
3B 1+3B 6B 1+6B
1000 1000 60 60 45 50 Ø5.0-Ø20.0mm Electronic Pitch
1250 1250 50 50 35 40 Ø6.0-Ø25.0mm Electronic Pitch
1600 1600 40 40 25 30 Ø10.0-Ø35.0mm Electronic Pitch

Advantages

  • Stable Cradle Structure


    Heavy-duty cradle design ensures smooth and stable laying-up operation; Reduces vibration and improves finished cable consistency.

  • Precise Pitch Control

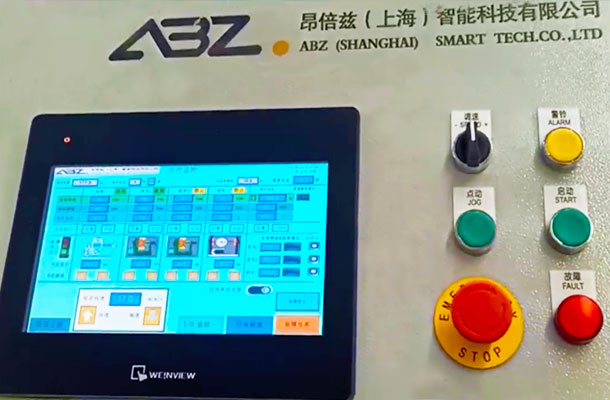

    Advanced control system provides accurate laying-up pitch adjustment; Ensures uniform cable structure and reliable product quality.

  • Wide Production Flexibility


    Suitable for various cable sizes and core configurations; Supports efficient production switching for different cable applications.

Applications

  • Power Cable Manufacturing

  • Building Wire Production

  • Bare Conductor Processing
