Copper Tape Screening Machine
High-speed, precision copper tape application for cable shielding.
Get the Brochure

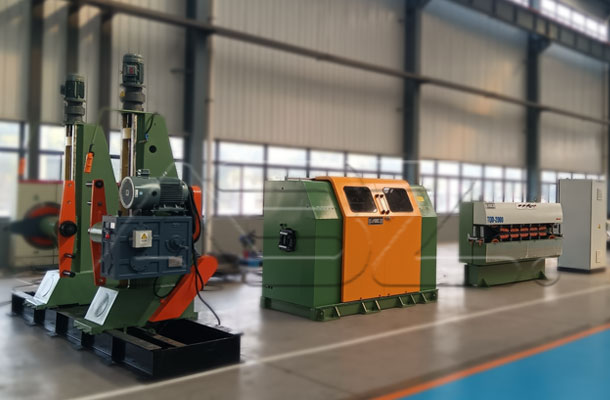

Copper Tape Screening Machine
Model: 600 (separate motors)
Technical Specifications
| Parameter | Value |
|---|---|
| Pay-off Bobbin (mm) | 1600-3150 |
| Copper tape max rotation speed (r/min) | 600 |
| Tape width (mm) | 10-90 |
| Wire OD (mm) | 15-120 |
| Stranding pitch (mm) | Electronic pitch |
| Caterpillar traction (KG) | 2000kg |
| Take-up Bobbin (mm) | 1600-3150 |
- Advantages
- Applications
- Cases
- Services
- Get Solution & Quotation
Advantages

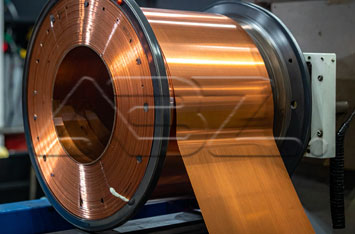

Precise Copper Tape Wrapping
Accurate taping system ensures uniform copper tape overlap and coverage; Improves shielding performance and finished cable quality.

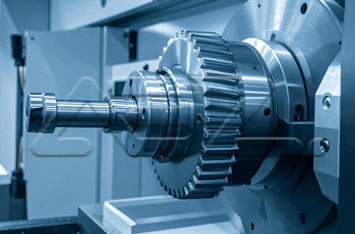

Stable High-Speed Operation
Optimized transmission structure enables smooth and reliable high-speed running; Reduces vibration and improves production efficiency.
Flexible Production Capability
Suitable for various cable sizes and copper tape specifications; Supports efficient switching for different shielding applications.
Applications
Power Cable Manufacturing
Building Wire Production

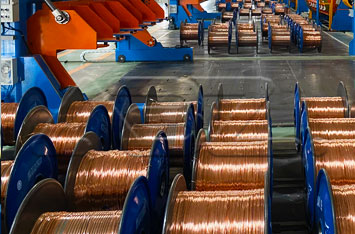

Bare Conductor Processing
