Rigid Frame Stranding Machine
High-speed, large cross-section stranding for power cables and conductors.
Get the Brochure

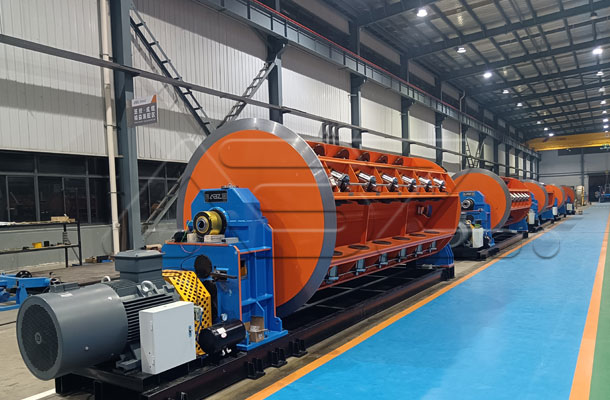

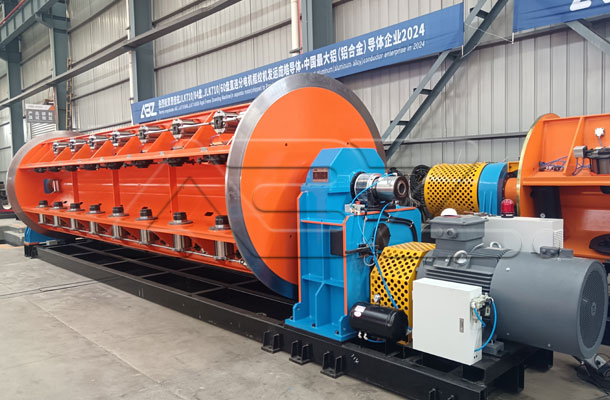

JLK630/710 High Speed Rigid Frame Stranding Machine
Technical Specifications
| ITEM | Parameter | 6 Bobbins | 12 Bobbins | 18 Bobbins | 24 Bobbins | 30 Bobbins | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 630 | 710 | 630 | 710 | 630 | 710 | 630 | 710 | 630 | 710 | ||
| Max. Rotating Speed of Stranding Cage | (r/min) | 250 | 210 | 230 | 190 | 195 | 165 | 175 | 155 | 150 | 130 |
| Stranding Single Wire Diameter (ø mm) | Al Wire | 1.8-5.0 | |||||||||
| Copper Wire | 1.5-4.5 | ||||||||||
- Advantages
- Applications

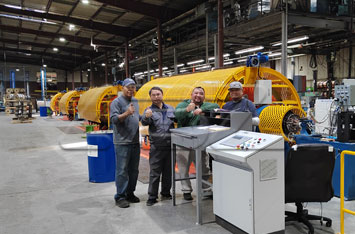

- Cases
- Services
- Get Solution & Quotation
Advantages
Rigid Frame Structure
High-rigidity frame minimizes vibration for stable operation; Ensures consistent stranding quality and long-term reliability.
High Efficiency Stranding
Precise tension control with multi-wire synchronization; Supports high-speed production with reduced scrap rate.
Easy Operation & Reliable Performance
User-friendly controls with low maintenance requirements; High-quality components reduce downtime and improve productivity.
Applications
Power Cable Manufacturing
Building Wire Production
Bare Conductor Processing
