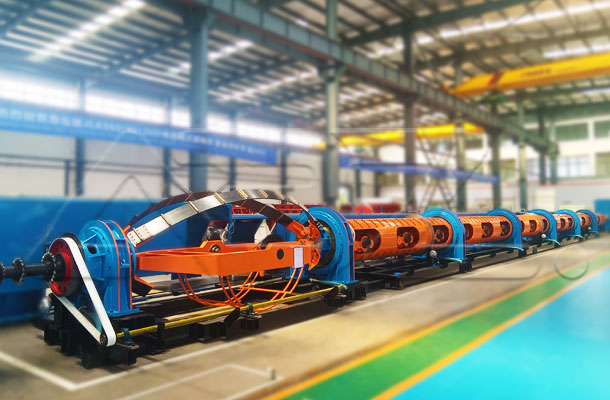

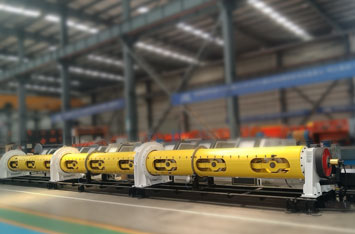

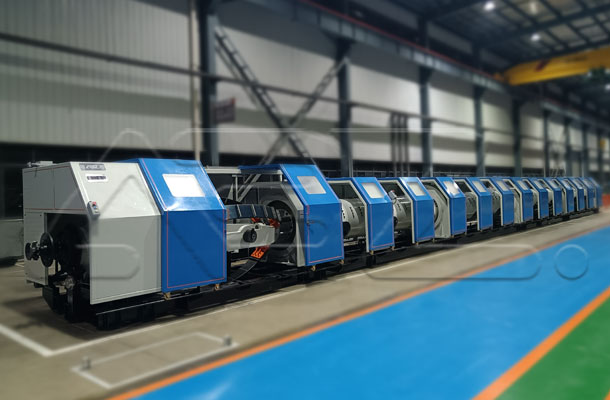

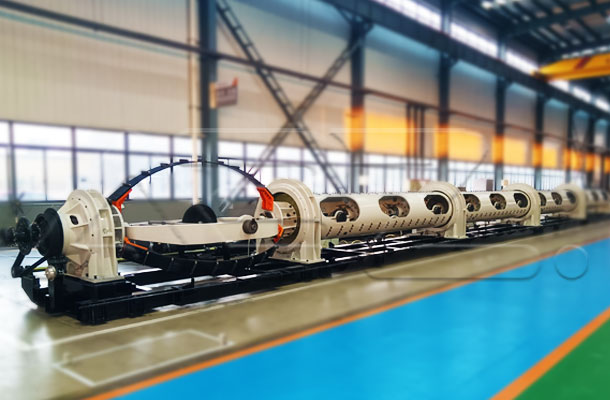

High Speed Tubular Stranding Machine

Model Series: JGG

ITEM	G200/1+6	G300/1+6	G400/1+6	G500/1+6	G630/1+6	G800/1+6	G800/1+12	G1250/1+12
Center Pay Off Bobbin	ø 200	ø 300	ø 400	ø 500	ø 630	ø 800	ø 800	ø 1250
Bobbin Inside Tube	ø 200	ø 300	ø 400	ø 500	ø 630	ø 800	ø 560	ø 630
Single Wire Diameter	0.16-0.20	0.5-1.5	0.7-2.5	1.2-4.0	1.3-5.0	1.8-5.0	1.3-3.6	1.5-5.0
Stranded Conductor Diameter	0.6	4.5	7.5	12	15	15	15	25
Tube Rotating Speed	1800rpm	1200rpm	700rpm	650rpm	600rpm	420rpm	580rpm	360rpm
Main Motor Power	18.5Kw	18.5Kw	22Kw	45Kw	45Kw	75Kw	110Kw	110Kw
Capstan Motor Power	0.75Kw	1.5Kw	3Kw	15Kw	22Kw	30Kw	37Kw	45Kw
Capstan Wheel Diameter	160	300	500	1000	1000	1000	1000	1600
Take Up Bobbin	ø 300-560	ø 500-630	ø 560-800	ø 500-1000	ø 800-1600	ø 1000-2000	ø 800-1600	ø 1000-2000
Bearing Stand Structure	Integrated Type
Pay off Tension	Mechanical/Swing Rod	Magnetic Hysteresis		Mechanical/Magnetic Power/Magnetic Hysteresis		Magnetic Power/Magnetic Hysteresis		Mechanical/Magnetic Power/Magnetic Hysteresis

Advantages

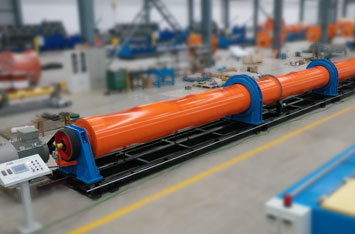

High-Speed Tubular Rotation

Precision-balanced tubular body enables smooth high-speed stranding operation; Reduces vibration and ensures stable product quality.

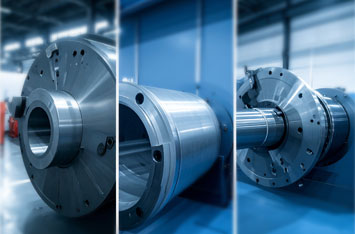

Reliable Bearing Support

High-performance bearing system improves operational stability and durability; Supports long-term continuous production with reduced maintenance needs.
Compact and Efficient Design

Optimized machine structure saves installation space and improves workflow; Enhances production efficiency for various wire and cable applications.
